Electric golf carts have become increasingly popular on golf courses and in various other settings due to their quiet operation, eco-friendliness, and low maintenance requirements. At the heart of these vehicles lies the electric motor, a crucial component that converts electrical energy into mechanical motion. In this comprehensive guide, we'll explore the inner workings of an electric golf cart motor, its components, and how they all come together to power these efficient vehicles.
Electric golf cart motors are designed to convert electrical energy from batteries into mechanical energy that propels the vehicle. These motors come in two main types: DC (Direct Current) and AC (Alternating Current). While DC motors have been traditionally used in golf carts, AC motors are gaining popularity due to their improved efficiency and performance.
To understand how an electric golf cart motor works, it's essential to familiarize yourself with its key components:
1. Battery Pack: The power source of the electric golf cart.
2. Motor: Converts electrical energy into mechanical energy.
3. Controller: Regulates power flow from the battery to the motor.
4. Solenoid: Acts as a high-current switch.
5. Wiring Harness: Connects all electrical components.
6. Accelerator Pedal: Controls the speed of the golf cart.

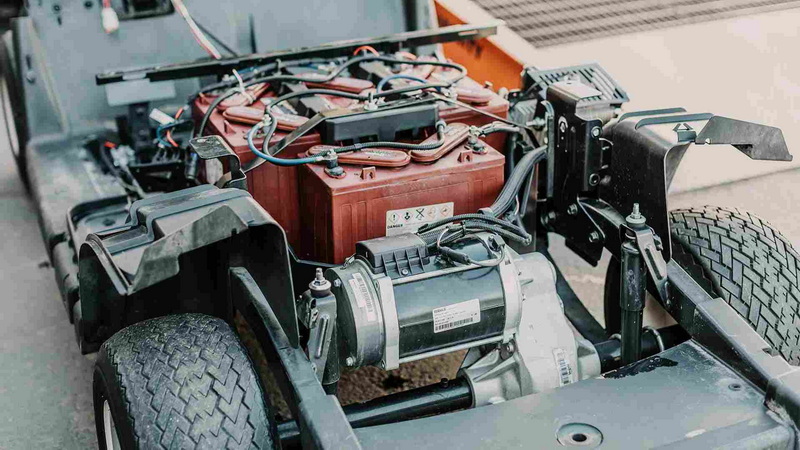

The battery pack is the heart of an electric golf cart's power system. Most golf carts use either lead-acid or lithium-ion batteries. Lead-acid batteries are more common due to their lower cost, while lithium-ion batteries offer better performance and longer lifespan but at a higher price point.
These batteries store chemical energy and convert it into electrical energy when needed. The voltage of the battery pack can vary, with common configurations including 36V and 48V systems.
The electric motor is the workhorse of the golf cart. It takes the electrical energy from the batteries and converts it into rotational mechanical energy to drive the wheels. The two main types of motors used in golf carts are:
1. DC Motors: These motors use direct current and are known for their simplicity and ease of maintenance.
2. AC Motors: These motors use alternating current and offer better efficiency and performance, especially at higher speeds.
Inside the motor, there are several key components:
- Stator: The stationary part of the motor that contains wire coils.
- Rotor: The rotating part of the motor, typically containing permanent magnets.
- Commutator: In DC motors, this component reverses the current direction periodically.
- Brushes: In DC motors, these conduct electricity from the power source to the commutator.
When electricity flows through the coils in the stator, it creates a magnetic field. This magnetic field interacts with the permanent magnets in the rotor, causing it to spin. The spinning rotor is connected to the golf cart's drivetrain, which ultimately turns the wheels.

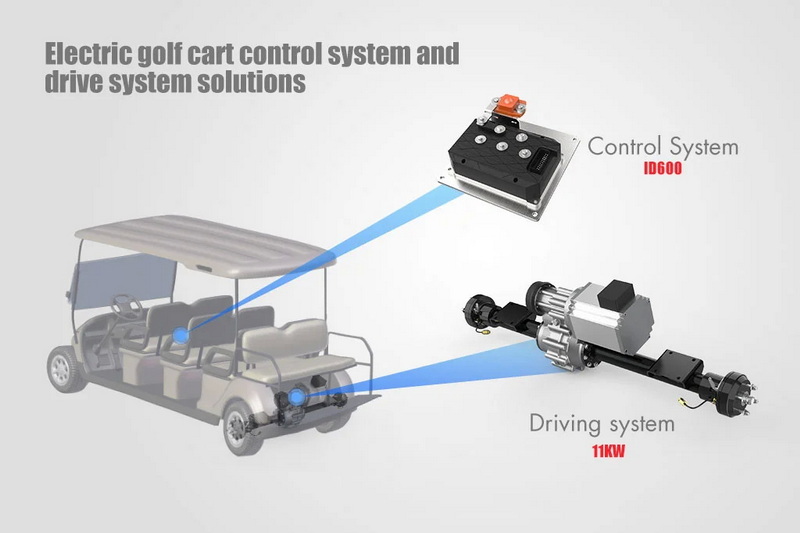

The motor controller acts as the brain of the electric golf cart's propulsion system. It regulates the flow of electricity from the batteries to the motor, controlling the speed and direction of the golf cart.
The controller performs several important functions:
1. Speed Control: By adjusting the amount of current sent to the motor, the controller can increase or decrease the cart's speed.
2. Direction Control: The controller can reverse the polarity of the current to change the direction of the motor's rotation, allowing the cart to move backward.
3. Acceleration Management: It provides smooth acceleration by gradually increasing the current to the motor when the accelerator pedal is pressed.
4. Regenerative Braking: In some advanced systems, the controller can use the motor as a generator when braking, converting kinetic energy back into electrical energy to recharge the batteries.
The accelerator pedal is the primary interface between the driver and the motor control system. When the driver presses the pedal, it sends a signal to the controller to increase the power output to the motor.
Most modern golf carts use a potentiometer in the accelerator pedal assembly. As the pedal is pressed, the potentiometer's resistance changes, sending a varying voltage signal to the controller. The controller then interprets this signal and adjusts the power output to the motor accordingly.
Now that we've explored the individual components, let's see how they work together to power an electric golf cart:
1. The driver turns on the golf cart, activating the electrical system.
2. When the accelerator pedal is pressed, it sends a signal to the controller.
3. The controller interprets this signal and determines how much power to send to the motor.
4. The controller draws power from the battery pack and sends it to the motor.
5. The motor converts this electrical energy into mechanical energy, causing the rotor to spin.
6. The spinning rotor transfers power through the drivetrain to the wheels, propelling the golf cart forward.
7. As the accelerator is pressed further, the controller increases the power to the motor, making the cart go faster.
8. When the driver releases the accelerator or applies the brake, the controller reduces or cuts off power to the motor, slowing the cart down.
To ensure the longevity and optimal performance of an electric golf cart motor, regular maintenance is crucial:
1. Battery Care: Regularly check battery water levels (for lead-acid batteries), clean terminals, and ensure proper charging.
2. Motor Inspection: Periodically inspect the motor for signs of wear or damage, particularly on the brushes in DC motors.
3. Controller Maintenance: Keep the controller clean and dry, and check for any loose connections.
4. Wiring Check: Inspect the wiring harness for any frayed or damaged wires.
5. Lubrication: Some motor components may require periodic lubrication to reduce friction and wear.
As technology progresses, electric golf cart motors are becoming more efficient and powerful. Some recent advancements include:
- Brushless DC Motors: These motors eliminate the need for brushes, reducing maintenance and improving efficiency.
- Advanced Motor Controllers: Modern controllers offer features like regenerative braking and improved power management.
- Lithium-Ion Batteries: These batteries provide longer range and faster charging times compared to traditional lead-acid batteries.
- Smart Charging Systems: New charging technologies help extend battery life and optimize charging efficiency.
Electric golf cart motors are fascinating pieces of engineering that combine simplicity with efficiency. By converting electrical energy from batteries into mechanical energy, these motors provide a quiet, eco-friendly, and low-maintenance solution for transportation on golf courses and beyond. Understanding how these motors work can help golf cart owners and enthusiasts appreciate the technology behind these vehicles and maintain them properly for optimal performance.
As technology continues to advance, we can expect to see even more efficient and powerful electric golf cart motors in the future, further enhancing the golfing experience and expanding the use of these versatile vehicles in various settings.
Electric golf cart motors can last anywhere from 20,000 to 50,000 miles, depending on usage and maintenance. With proper care, some motors can even exceed this range. Regular maintenance, such as keeping the motor clean and properly lubricated, can significantly extend its lifespan.
Yes, it's possible to upgrade your golf cart's motor for improved performance. This can involve replacing the existing motor with a more powerful one or upgrading to a different type of motor (e.g., from DC to AC). However, it's important to ensure that the new motor is compatible with your cart's controller and other components.
Regenerative braking is a feature in some advanced electric golf carts where the motor acts as a generator when the cart is slowing down. As the cart decelerates, the motor captures some of the kinetic energy that would otherwise be lost as heat in traditional braking systems. This energy is then converted back into electrical energy and used to recharge the batteries, improving overall efficiency.
DC (Direct Current) motors have been traditionally used in golf carts due to their simplicity and lower cost. They operate directly from the battery's DC power. AC (Alternating Current) motors, on the other hand, require an inverter to convert the battery's DC power to AC. While more complex, AC motors offer several advantages, including higher efficiency, better performance at higher speeds, and reduced maintenance due to the absence of brushes.
The controller manages the golf cart's speed by regulating the amount of current flowing from the batteries to the motor. When the accelerator pedal is pressed, the controller increases the current flow, causing the motor to spin faster and the cart to accelerate. As the pedal is released, the controller reduces the current flow, slowing down the motor and the cart. The controller can also reverse the current flow to change the direction of the motor's rotation, allowing the cart to move backward.
